Roof Shingles roof shingles, and photovoltaic shingles

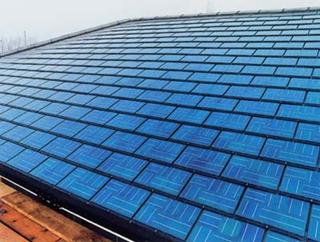

Combining solar innovation with award winning design, the flexible SHR assumes the pattern of traditional asphalt shingles. The new PV shingle enables roofs of residential or commercial buildings to become sources of electricity as well as protection from the elements. The PV shingle face is textured to blend and complement the granular surface of conventional surrounding shingles. Each shingle is 12 inches (30.48 cm) wide by 86.5 inches (219.71 cm) long and nailed in place on roof decking over 30 lb. felt sheeting. Electrical lead wires, #18AWG, extend 12 inches (30.48 cm) from underside of each shingle and pass through the roof deck allowing interior roof space connections. Once in place, the sun’s warmth helps bond shingles together forming a weather-resistant seal. Cell exposure 5.0 inches (12.7 cm) x 86.4 inches (219.46 cm). Array size depends on power demands.


How do you install the solar shingles?

Roof Shingles roof shingles, and photovoltaic shingles

An owner's installation manual is included with the purchase of all solar roofing products.  In general, a roofing contractor will begin by following conventional roofing installation procedures, until the solar shingle installation. Using a template provided by Manufacturer, the roofer will then mark and drill holes for the solar shingle wiring to be pulled through the roof. After the solar shingles are installed to match the course of the conventional shingles, an electrical system installer will wire the solar shingles together in the space below the roof, and then wire the array of shingles to the combiner box.  The electrical contractor will take the wires from the combiner box and run them down to the power conditioning equipment (charge controller, meters, system disconnect switches, fuses, inverter, and batteries).



Roof Shingles roof shingles, and photovoltaic shingles SYSTEM BENEFITS Attractive style Fully integrated shingle roof Lower electric bill Free electricity Pollution-free power Increased home value Manufacturer backed warranty Protects the environment Exceptionally durable Great investment Significant state rebates available SYSTEM FEATURES   Architecturally pleasing systems that do not distract from the natural lines of the home Complete design freedom Solar shingles are structurally and aesthetically integrated roofing elements Capable of withstanding 80 mph wind loads No support structures needed UL Listed as prepared roofing cover Modules and inverters UL listed Wind and water tight roof Suitable both for renovation and for new construction 20-year power output and 5-year system warranty Direct nailing on wood decks with fire-resistant underlayment No back-ventilation of solar shingles necessary Easy to transport and install Lightweight shingles are easy to handle and can be placed directly on fire-resistant roofing underlayment

The US series modules me exceptional/y durable.

The Triple Junction cells are made by depositing the active silicon material on unbreakable stainless steel sheet metal.  A steel back plate provides stiffness and the modules are encapsulated in UV stabilized polymers and framed in anodized aluminum. No glass is used. Bypass diodes ore connected across each cell, enabling the modules  to produce power even when partially shaded. The US64, 42 and 32 come equipped with (I conduit ready, weather proof junction box. The US2 I, I 5, 3 and I come with on eight-foot cable.

The US series Triple Junction silicon modules are everything that you have wonted in (1 solar electric module: UNBREAKABLE EFFICIENT SHADOW PROTECTED AND LOW COST UL and CUL listed, NEW 20 year warranty.
